LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

Shenzhen Istartek Technology Co., Ltd.
Contact Now
    Buy cheap LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports from wholesalers

    Buy cheap LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports from wholesalers
    • Buy cheap LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports from wholesalers

    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    Ask Lasest Price
    Certification : FCC, ce, RECH, GS, UL, CSA, RoHS, Sgs, SIG(BluetoothSIG), BIS(ISI)
    Brand Name : iStartek
    Supply Ability : 9000000 Piece/Pieces per Month
    Price : $1-$19.00
    Model Number : WR11S
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 1-7 workdays
    • Product Details
    • Company Profile

    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    LTE 300mbps home sim card slot 4g 3g gsm voice call volte wireless router with rj11 ports

    WR11S Advantages
    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    4G Signal to WIFI Signal

    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    4G Signal To Lan

    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    2.4G, 300Mbps WI-FI Rate

    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 PortsSupport 3G 4G LTE Network
    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    Support VOLTE Function

    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    Use ZX297520V3E Chip

    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    Support WPS, VPN, Port Mapping

    LTE 300mbps Home 4g 3g Gsm Voice Call Volte Wireless Router With RJ11 Ports

    Support 32 MAX Terminates

    Specification

    1.1 Basic Specifications

    ItemDescription
    Dimensions120mm (H) x 150mm (W) x 50mm (D)
    Power Supply

    Input: Universal range 100V~240V AC

    Output: 12V DC/1A

    Power consumption<12W
    MemoryRAM 512Mb / ROM 1GMb
    Slicslic Le9641
    USIM/SIM Slot

    2FF SIM card

    support SIM/USIM/UIM, standard 6 PIN SIM card interface,

    support 3V SIM card and 1.8V SIM card; internal

    LED Indicators

    Power LED×1

    WPS/WLAN LED×1

    LAN LED×1

    LTE Internet LED×1

    Signal LED×3

    WPS ButtonWPS Button×1
    Reset ButtonTactile button. Long press over 10s to restore the factory settings
    Ethernet PortRJ45×1, 10/100M auto-sensing, LAN/WAN
    Voice PortRJ11×1
    USB PortUSB 2.0×1
    Antenna

    4G/3G/2G:Internal Antenna OR External antenna(optional);

    WIFI: Internal Antenna

    ESDESD Protection circuit; Contact±4KV, Air±8KV
    Operating Temperature-20℃ ~ 60℃
    Storage Temperature-25℃ ~ 70℃
    Operating Humidity5% ~ 95%

    1.2 4G/3G/2G Technical Specifications

    ItemDescription
    Wireless Access TechnologyTD-LTE/FDD/WCDMA/TD-SCDMA/GSM/GPRS/EDGE/EGPRS
    Bands(Max)

    Four standard configurations(Optional):

    WR11S-Xce(Asia):

    LTE:B1/B3/B5/B8/B38/B39/B40/B41;WCDMA:B1/B8;TD-SCDMA:B34/B39

    WR11S- P (Asia):

    LTE:B1/B2/B3/B5/B7/B8/B28A/B28B/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900

    WR11S-E (Europe & Africa):

    LTE:B1/B2/B3/B5/B7/B8/B20/B28A/B34/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900

    WR11S-A (Latin America):

    LTE:B2/B3/B4/B5/B7/B8/B28A/B28B/B66;WCDMA:B2/B4/B5/B8;GSM850/GSM900/GSM1800/GSM1900

    More bands can be customized.

    Data Rate

    LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL);

    LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL);

    WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL);

    TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL);

    EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL);

    GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL);

    GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL);

    LTE 300mbps home sim card slot 4g 3g gsm voice call volte wireless router with rj11 ports

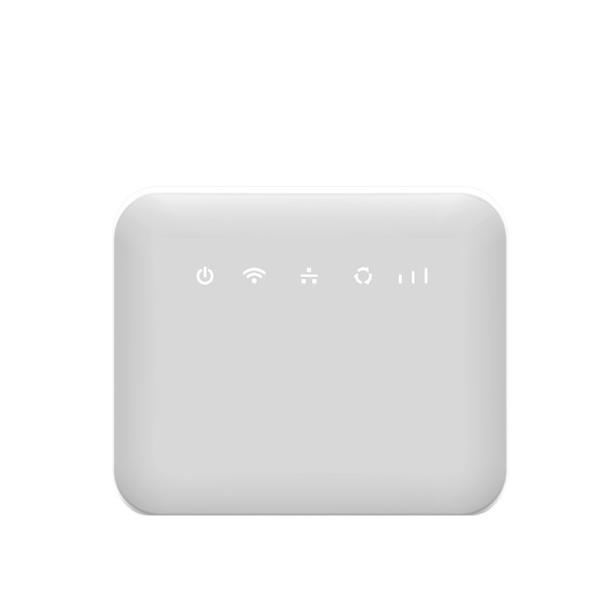

    Products Pictures
