Dedicated to Provision of Long Term Stable Running IoT Devices
5 Years
| Ask Lasest Price | |
| Certification : | CE, ROHS, ISO9001, Patent |
| Brand Name : | iStartek |
| Supply Ability : | 999999 Piece/Pieces per Month |
| Price : | $1.00-$19.00/PC |
| Model Number : | MC118 4G Wireless Router |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Delivery Time : | 1-7 days |

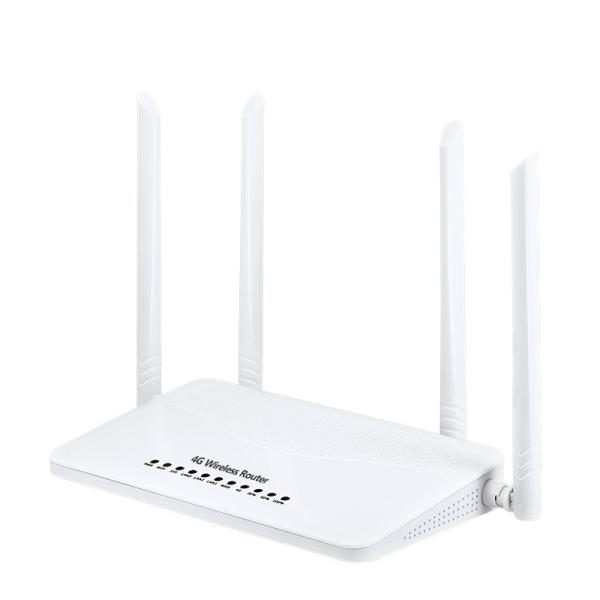

iStartack MC118 wifi router is made of industry grade pcb board, with overcurrent protection. It has 4 high gain antennas (dual 3G/4G antennas+duel 2.4G antennas), to keep strong signal receving. Watchdog design that can keep the device continuous stable working. Especially, it can support 5-12V power supply, free use device by connecting power bank. MC118 router is perfect for home use.
| APPLICATIONS |
| SPECIFICATIONS |
| Device Model | MC118 4G Wireless Router | |
| CPU | MTK RT7628, MIPS CPU, Basic frequency: 580Mhz | |
| LTE Chipset | USE Qualcomm 9X07 | |
| RAM | 512Mb DDR2 | |
| Flash | 64Mb SPI Flash | |
| Wireless communication Speed | 2.4Ghz 2T2R MIMO max300Mbps | |
| Optional Version CAT4 | TD5 MDM9607, CAT4 (Aisa, Euro, Au, LA, AF, Middle East, Ocean) | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28 TDD-LTE: B38/39/40/41 WCDMA: B1/B2/B5/B8 TDSCDMA: B34/B39 CDMA&EVDO: BC0 GSM: 850/900/1800/1900 |
| TE5 MDM9207, CAT4 (Asia, Africa, Euro, AU) | LTE FDD: B1/B3/B5/B7/B8/B20 TDD-LTE: B38/39/40/41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900 | |
| ML7820+ XCI_SU | FDD-LTE B1/3/5/8 TDD-LTE B34/38/39/40/41 TDS B34/39 +WCDMA B1/8 | |
| ML7820+ CeI_SU | FDD B1/3/5/8 TDD B38/39/40/41 TDS B34/39 WCDMA B1/8 GSM 900/1800 | |
| Optional Version CAT6 | Coming Soon | |
| Note: Customization of 3G.4G frequencies are available. | ||
| Data service CAT4 | TDD-LTE | 3GPP R9 CAT4 DL: 112.5Mbps, UL: 12.5Mbps |
| FDD-LTE | 3GPP R9 CAT4 DL: 150Mbps, UL: 50Mbps | |
| WCDMA | DL: 21Mbps, UL: 5.76Mbps | |
| TD-SCDMA | DL: 2.8Mbps, UL: 2.2Mbps | |
| EDGE | Class12, DL: 236.8kbps, UL:118kbps | |
| GPRS | Class10, DL: 85.6kbps, UL: 85.6kbps | |
| GSM | CSD:9.6kbps | |
| Transmit power | TD-LTE/FDD-LTE: +23 ±2dBm(Power class 3) TD-SCDMA:24dBm +1dB/-3dB (power class 2) WCDMA: +24 +1/-3dBm(Power class 2) GSM B5/8: +33 ±2dBm(Power class 4) GSM B2/3: +30 ±2dBm(Power class 1) | |
| What New? | 1. 4 High gain antennas (dual 3G/4G antennas+duel 2.4G antennas), keep strong signal receiving | |
| 2. Inbuilt watch Dog, keep device continuous stable working | ||
| 3. Industry grade PCB design, with overcurrent protection | ||
| 4. Support 5-12V power supply, free use device by connecting a power bank | ||
| Interface Type | micro USB DC IN power port *1(5-12V adaptive) | |
| 5.5*2.1mm DC IN port port *1(5-12V adaptive) | ||
| RESET button *1 | ||
| LAN*4 (WAN/LAN0adaptive)10/100Mbpsadaptive | ||
| Indicator | PWR WiFi SYS LAN3 LAN2 LAN1 WAN/LAN0 4G/3G 30% 60% 100% | |
| Antennas | Dual external high gain 4G/3G omnidirectional antenna | |
| Dual external high gain 2.4G omnidirectional antenna | ||
| Device Color | White | |
| Device Size | 19.5*12.2*2.6 (not including antennas) | |
| Power Consumption | Typical power consumption <7W | |
| Protocol Standard | IEEE 802.11b/g/n | |
| Operating frequency | 2.4G | |
| Default gateway | 192.168.10.1 | |
| Default SSID | 4G-CPE-**** | |
| Default password | 12345678 | |
| Working Mode | 3G/4G Wireless router mode | |
| Standard router mode | ||
| Wireless AP+Wireless client bridging mode | ||
| Wireless AP+Client mode | ||
| Working Temperature | —10℃ to 40℃ | |
| storage temperature | —40℃ to 70℃ | |
| operating humidity | 40% to 90% RH No condensation | |
| storage humidity | 10% to 95% RH No condensation | |
| ACCESSORIES |
| Router | Power Adapter | User Manual |
| CERTIFICATES |
CE RoHS ISO9001 Patent
| PICTURES |
| FAQ |
Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
Do you accept PCBA orders only?
Of course, as an OEM/ODM manufacturer, we can provide PCBA in a
short time with good quality.
Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from
design company, we have our own
firmware development team to support you in 100%.
Do you.....
Maybe, why don't contact us now! Inquiring us to see if we can, or
if we do, to see if we can surprise you!
|
|
