    5.5V Wire Temperature Sensor

    Ask Lasest Price
    Brand Name : iStartek
    Model Number : DS18B20
    Supply Ability : 900000 Piece/Pieces per Day
    Price : $7.00
    • Product Details
    • Company Profile

    5.5V Wire Temperature Sensor

    Product Description

    5.5V Wire Temperature Sensor

    The DS18B20-PAR digital thermometer provides 9 to 12–bit centigrade temperature measurements and

    has an alarm function with nonvolatile user-programmable upper and lower trigger points. The
    DS18B20-PAR does not need an external power supply because it derives power directly from the data
    line (“parasite power”). The DS18B20-PAR communicates over a 1-Wire bus, which by definition
    requires only one data line (and ground) for communication with a central microprocessor. It has an
    operating temperature range of –55°C to +100°C and is accurate to ±0.5°C over a range of –10°C to
    +85°C.
    Application

    1. Suitable for temperature measurement and control fields such as freezer, granary, storage tank, telecommunications room, power room, cable trunking, etc.
    2. Car air conditioners, refrigerators, freezers, and medium and low-temperature drying boxes, etc.

    Specification

    Model NameDS18b20
    Power supply3.0V~5.5V
    Wide temperature range-55℃ ~ +100℃ (–67°F to +212°F)
    Output leadsRed(VCC), Yellow(DATA), Black (GND)
    Weight22g(1M)
    LengthFrom 1-100M, Customized
    Accuracy
    ±0.5°C
    Thermometer resolution
    9-12 bits

    Pictures

    5.5V Wire Temperature Sensor5.5V Wire Temperature Sensor

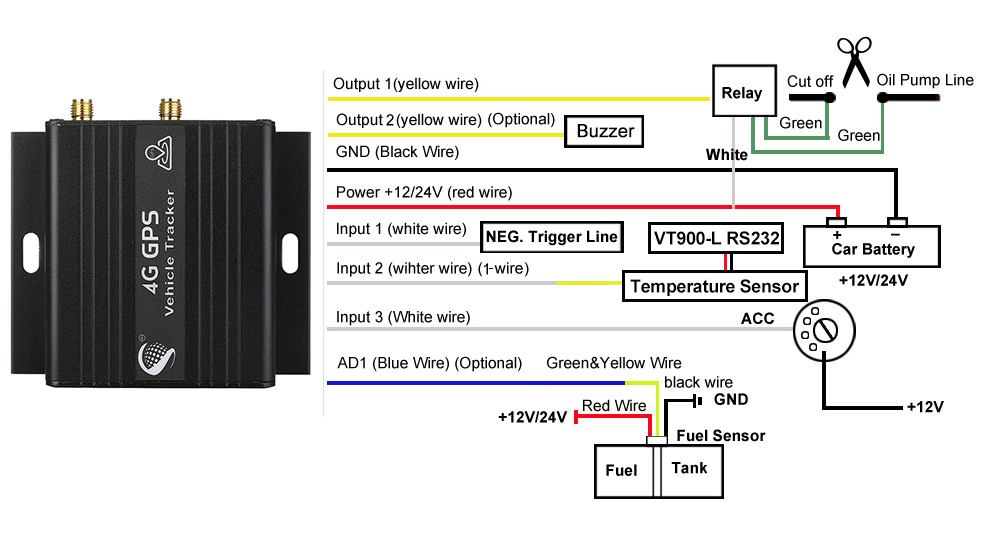

    Diagram to VT900 GPS

    Power supply from VT900-L Customized AD

    5.5V Wire Temperature Sensor

    Power supply from VT900-L RS232 Port by Temperature Sensor Power Cable

    5.5V Wire Temperature Sensor

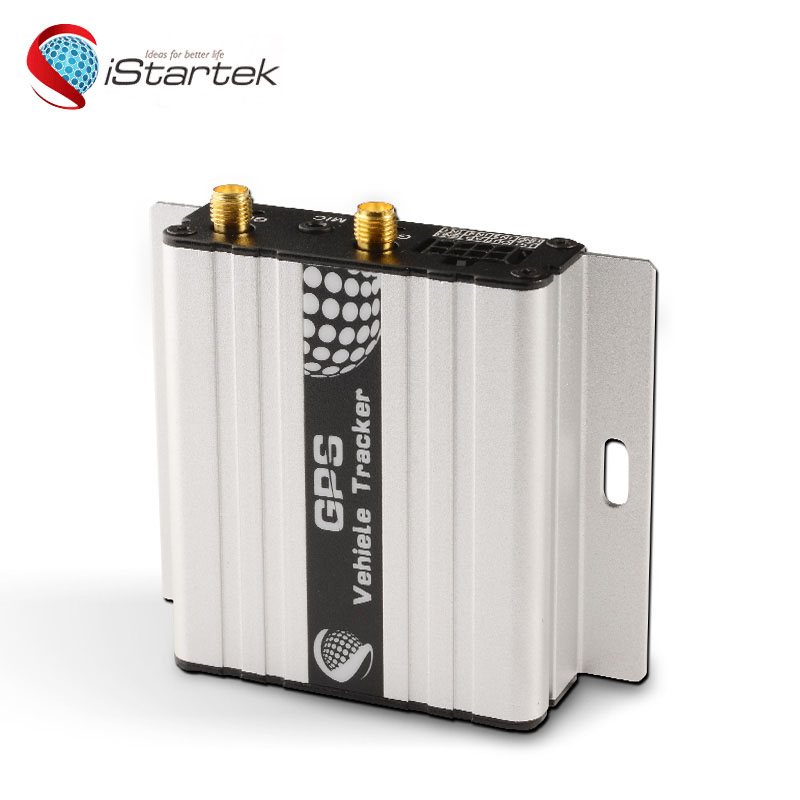

    Supported GPS Model

    5.5V Wire Temperature Sensor5.5V Wire Temperature Sensor5.5V Wire Temperature Sensor

    VT600 2G VT900-G 3G VT900-L 4G


    Company Information

    5.5V Wire Temperature Sensor

    FAQ

    1. Are you a manufacturer?

    Yes, we are a manufacturer for GPS Tracker in China with 9 years experience
    2. Do you accept rebranding?
    Yes, rebranding on product case and gift box is available.
    3. Can you do hardware/firmware customization?
    Yes, OEM/ODM is our specialty. Our R&D team has more than 6years industry experience.
    4. What certificate you have?
    CE, RoHS, ISO9001:20087, NBTC, DLT
    5. How are quality control and warranty?
    All products have been 100% strictly Quality Checked in the house before packing.
