| Brand Name : | iStartek |

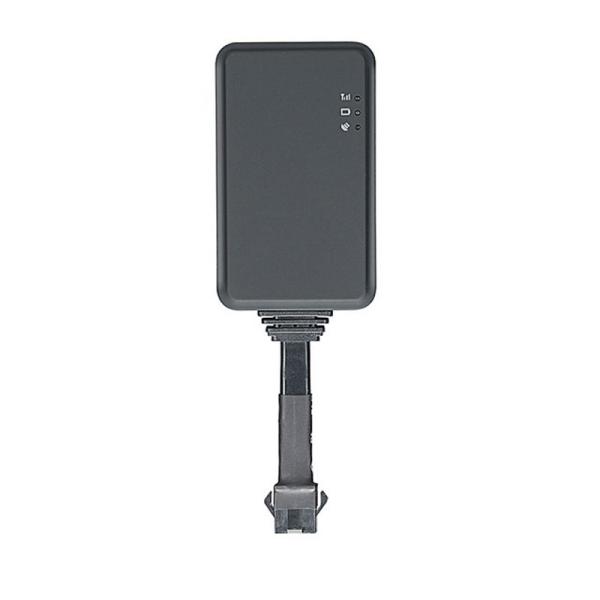

| Model Number : | VT202 |
| Certification : | CE FCC ROHS NBTC |
| Price : | $1-$15.00 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 900000PCS/Month |
| Delivery Time : | 1-7 days |
Line No. Specification Color Instruction
MOTOR Yellow Connect to relay control line
ACC Orange Connect to ACC ignition
V- Black(thick) Negative side
car storage battery. V+ Red(thick)
Notes of the relay wiring
The relay wiring of pump: oil connectors of both ends are a fine
white line (85)
and a fine yellow line (86). The fine white line (85) is connected
to vehicle positive
power (+12V). The fine yellow line is connected to the device relay
control line.
Cut off the positive connection line of the pump; then connect in
series to the
relay N.C. contact (thick green line 87a) and the other end to
relay COM contact (thick
green line 30).
| Items | Specifications |
| Product size | 65.5mm x 38.5mm x 13.5mm |
| Packing size | 145mm x 90mm x 30 cm |
| Weight | 36.2g |
| Packing weight | 133g |
| Backup Battery | 120mAh / 3.7V |
| Voltage | 9-100VDC |
Operation Temperature | -20℃-60℃ |
| Humidity | 5% - 95% |
| GSM Frequencies | 850/900/1800/1900 MHz |
| GPRS | Class 12 |
| GPS Channel | 20 |
| GPS Sensitivity | -159dBm |
| Acquisition Sensitivity | -144dBm |
| Position Accuracy | 10m |
TTFF (Open Sky) | Cold Start: ＜38s |
| Warm Start:＜15s | |
| Hot Start:＜2s | |
| GSM/GPS Antenna | Built-in design |
| LED Indicator | GSM-green, GPS-blue, Power-red |
| Data Transmit | TCP, SMS |
Standard Accessories:
| VT202 Tracker | Power Cable | Sticker | User Manual |
Optional Accessories:
| Relay |
Packing:
1. VT202 Size: 65.5*38.5*13.5mm
2. VT202 Weight: 36.2g
3. VT202 will be packed by gift box, the size is 145*90*30mm, 133g per ft box
Delivery:
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, the lead time will be 3-5weeks after the receipt of payment.
| Free GPS Tracking System |
We provide free GPS Tracking System for one year, simple and easy for management and tracking!
| Features | Descriptions |
| Time Zone & Local Language | More than 10 languages and timezone settings |
| Multiple Account Support | Allow you to set up an account for company user to management many vehicles |
| Group Management | The user can manage the vehicle by setup difference groups |
| Reporting and Export | The overview report, Speeding report, Mileage Report, Stop Report |
| Real-Time Tracking | Track the vehicle by real-time |
| Location History | Replay the location history |
| SOS Alarm | SOS Alert |
| Communication Failure Monitoring | Monitor the vehicle when it is not reporting |
| Over Speed Monitoring | Monitor the vehicle when it is over a speed |
| Online Vehicle Engine Control | Turn on or turn off the engine |
| Geo-fence Notification | Set up a zone to monitor the vehicle to enter or exit this zone. |
| Landmark | Mark the new point in the map by yourself |
