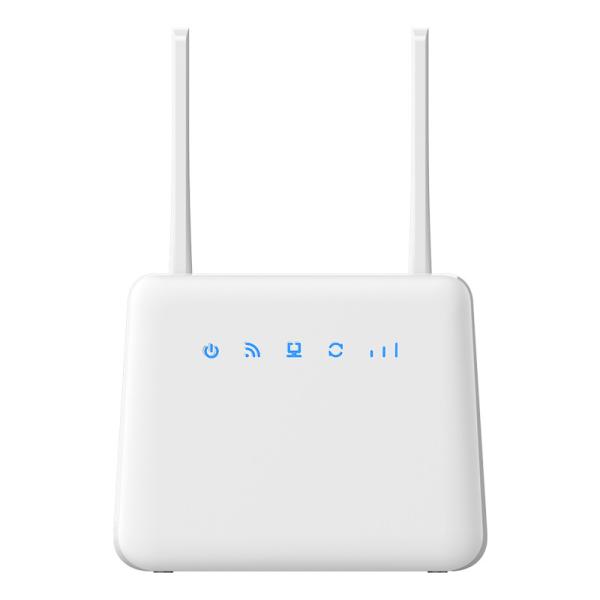

Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

Shenzhen Istartek Technology Co., Ltd.
Contact Now
    Buy cheap Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router from wholesalers

    Buy cheap Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router from wholesalers
    • Buy cheap Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router from wholesalers
    • Buy cheap Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router from wholesalers
    • Buy cheap Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router from wholesalers
    • Buy cheap Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router from wholesalers
    • Buy cheap Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router from wholesalers
    • Buy cheap Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router from wholesalers

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    Ask Lasest Price
    Certification : FCC, ce, RECH, GS, UL, CSA, RoHS, Weee, Sgs, SIG(BluetoothSIG), BIS(ISI)
    Brand Name : iStartek
    Supply Ability : 9000000 Piece/Pieces per Day
    Price : $19.00
    • Product Details
    • Company Profile

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    Click us: The web price is not including any 3G or 4G or 5G module, which means you can not get the Internet by inserting a SIM card. Because the different country has different operators, here need to install different 3G or 4G or 5G module. If you want to order here and also need the 3G or 4G, Please sent us an inquiry immediately. We will give you a big discount.

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    WR11S Advantages
    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    4G Signal to WIFI Signal

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    4G Signal To Lan

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    2.4G, 300Mbps WI-FI Rate

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe routerSupport 3G 4G LTE Network
    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    Support VOLTE Function

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    Use ZX297520V3E Chip

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    Support WPS, VPN, Port Mapping

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    Support 32 MAX Terminates

    Specification

    1.1 Basic Specifications

    ItemDescription
    Dimensions120mm (H) x 150mm (W) x 50mm (D)
    Power Supply

    Input: Universal range 100V~240V AC

    Output: 12V DC/1A

    Power consumption<12W
    MemoryRAM 512Mb / ROM 1GMb
    Slicslic Le9641
    USIM/SIM Slot

    2FF SIM card

    support SIM/USIM/UIM, standard 6 PIN SIM card interface,

    support 3V SIM card and 1.8V SIM card; internal

    LED Indicators

    Power LED×1

    WPS/WLAN LED×1

    LAN LED×1

    LTE Internet LED×1

    Signal LED×3

    WPS ButtonWPS Button×1
    Reset ButtonTactile button. Long press over 10s to restore the factory settings
    Ethernet PortRJ45×1, 10/100M auto-sensing, LAN/WAN
    Voice PortRJ11×1
    USB PortUSB 2.0×1
    Antenna

    4G/3G/2G:Internal Antenna OR External antenna(optional);

    WIFI: Internal Antenna

    ESDESD Protection circuit; Contact±4KV, Air±8KV
    Operating Temperature-20℃ ~ 60℃
    Storage Temperature-25℃ ~ 70℃
    Operating Humidity5% ~ 95%

    1.2 4G/3G/2G Technical Specifications

    ItemDescription
    Wireless Access TechnologyTD-LTE/FDD/WCDMA/TD-SCDMA/GSM/GPRS/EDGE/EGPRS
    Bands(Max)

    Four standard configurations(Optional):

    WR11S-Xce(Asia):

    LTE:B1/B3/B5/B8/B38/B39/B40/B41;WCDMA:B1/B8;TD-SCDMA:B34/B39

    WR11S- P (Asia):

    LTE:B1/B2/B3/B5/B7/B8/B28A/B28B/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900

    WR11S-E (Europe & Africa):

    LTE:B1/B2/B3/B5/B7/B8/B20/B28A/B34/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900

    WR11S-A (Latin America):

    LTE:B2/B3/B4/B5/B7/B8/B28A/B28B/B66;WCDMA:B2/B4/B5/B8;GSM850/GSM900/GSM1800/GSM1900

    More bands can be customized.

    Data Rate

    LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL);

    LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL);

    WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL);

    TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL);

    EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL);

    GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL);

    GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL);

    Coupon

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    Products Pictures

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    Company Infomation

    Free Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe routerFree Sample 10 Years Factory new outdoor indoor 3g wireless band broadband wifi hotspot sim 4g lte cpe router

    FAQ

    1. Do you provide customer LOGO?

    Yes, we can provide customer LOGO on firmware and hardware.

    2. Do you accept PCBA orders only?

    Of course, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

    3. Do you provide firmware support?

    Sure thing, unlike other companies that are buying solutions from the design company, we have our own firmware development team to support you in 100%.

    4. Do you....?

    Maybe, why don't you contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
